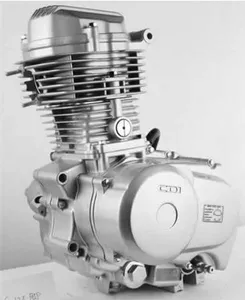

Engine (156FMI)
 Engine (156FMI) |
Product Description
We are Wuxi futong international company, with years of international business experience, we already been a key between key between importers and exporters, especially in the field of inflatables, as I used to work for inflatable company for long time. What we are seeking for is trying our best to satisfy our clients by the favorable price and the high quality with our information resource.
| Engine Mode | 156FMI |
| Engine Name | CG125 |
| Engine Type | , |
| Singlecylinder,4-stroke,air-cooling,camshaft downward | |
| Displacement(ml) | 124.04 |
| Dimension(mm×mm×mm) | 358×324×446 |
| Net Weight(kg) | 26 |
| Max.Power(kw/r/min) | 7.2/8500±5% |
| Max.Torque (N.m/r/min) | 8.6/7500±5% |
| Compression Ratio | 9.01 |
| Bore and Stroke(mm×mm) | 56.5×49.5 |
| Ignition method | CDI |
| Lubrication method | Pressure and Splash |
| Min.Fuel Consumption(g/Kw.h) | ≤367 |
| Starting method | kick |
| Clutch method | Manual Wet Multi-Plate |
| Gearshift Method | Constant mesh, two stage transmission ,5-speed Gearshift |
| Chosen model | Standard model |
| Applicable Motorcycle Type | motorcycles |
| Performance and characteristic | |
| 1 | |
| This engine has a camshaft set downward, tilting gears transmission system and timing gas distribution of ejector rod type. Its transmission is very stable and has a sound reliability. | |
| 2, | |
| The structure of the engine is simple and easy to mend. | |
| The high torque of this engine make it possible to run on the different road. The transferring of the torque lengthens the engine. | |
| Model NO.: | 156FMI |
|---|---|
| Company: | Wuxi Futong International Trade Co., Ltd. (Wuxi Futong Motorcycles Co., Ltd. ) |
